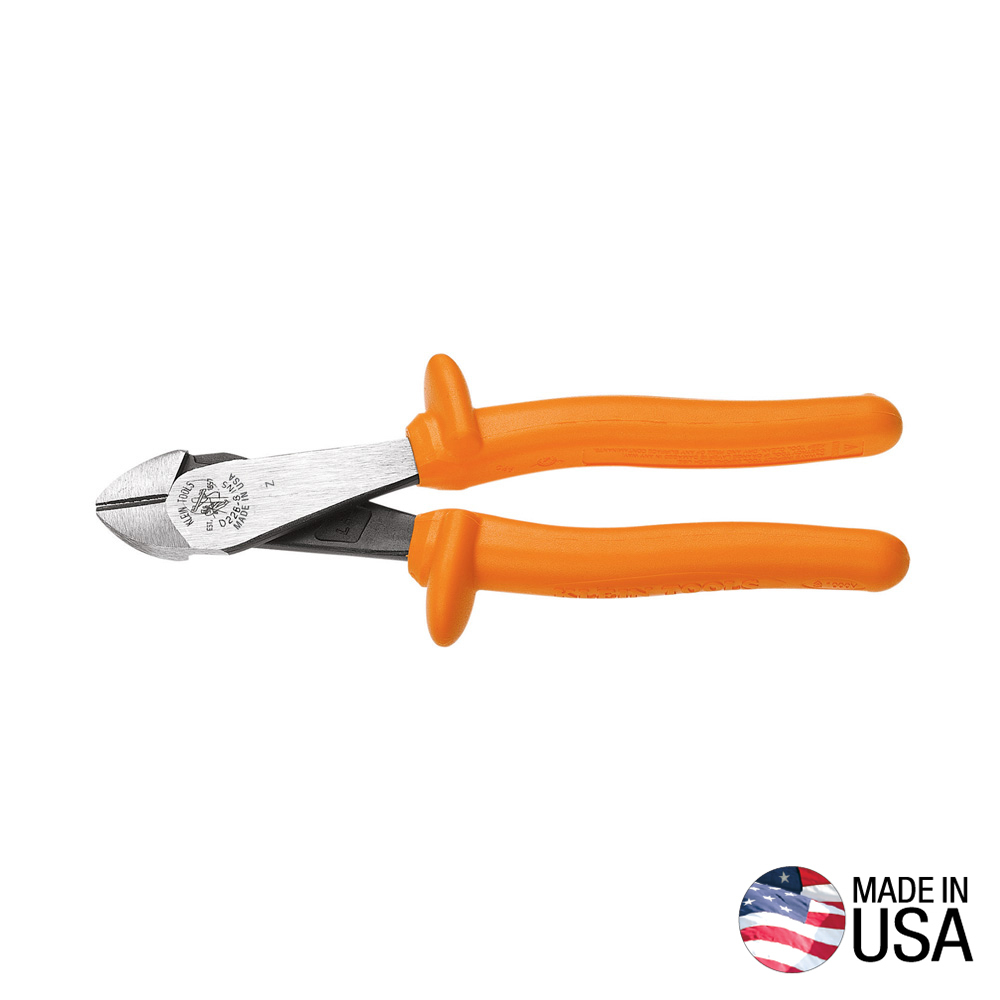

Diagonal Cutting Pliers, Insulated, High-Leverage, 21 cm

D228-8-INS

  • Klein Tools Pliers are individually tested to meet or exceed ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools, and are clearly marked with the official 1000-volt rating symbol
  • Two layers of insulation provide protection against electric shock
  • Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
  • A flame-retardant, impact-resistant, bright orange outer coating
  • Made in the USA
  • High-leverage design. Rivet is closer to the cutting edge for 36% greater cutting power than other pliers designs
  • Integral guards help prevent hand contact with conductive parts
  • Made of forged steel for maximum durability
1000volt Product Icon
Videos
Images
High-Res JPG d2288ins_photo.jpg

These High-Leverage Insulated Diagonal-Cutting pliers are 1000 V rated for safety on the job. The thick, exceptionally tough white inner layer coating is bonded to the tool. Integral thumb guards help prevent hand contact with conductive parts. The bright orange handles make this tool comfortable to use all day and easy to identify in the field. The durable, moulded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools. Cutting knives are induction hardened for a long life.

Specifications
Type:
Diagonal-Cutting Pliers
Application:
ACSR, Screws, Nails and Most Hardened Wire
Special Features:
Flame Retardant and Impact Resistant Handle
Overall Length:
8.24'' (20.9 cm)
Material:
Induction-Hardened Steel
Nose Type:
Tapered
Jaw Length:
0.781'' (2 cm)
Jaw Width:
1.25'' (3.2 cm)
Jaw Thickness:
0.46'' (1.2 cm)
Cutting Knives:
Standard
Cut Style:
Diagonal-cutting
Joint Type:
Hot-riveted
Handle Colour:
Orange
Handle Finish:
2-Layer Insulation
Handle Length:
4.9'' (12.4 cm)
Insulated:
Yes
Standard:
IEC 60900 and ASTM F1505
Weight:
11.2 oz (318 g)
UPC:
092644720420
Additional Information
Feature Icon klein/wf_standard-cut.jpg
Warnings
  • Only use tools that are marked with the official international 1,000-volt rating symbol shown above, if there is any chance that the tools will make contact with a live electrical source.
  • Whenever possible, always switch off lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with a live source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact a live electrical source.
  • Wear approved eye protection.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
  • Because moisture, films or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry and free from any surface contaminants.
